Strainer – Cast Iron, PN-16, Y Type

Cast Iron | PN-16 (Y Type)

Strainer – Cast Iron, PN-16, Y Type, listed in sizes DN40 to DN700 (1½″ to 28″), with design references EN 13789, BS 5152, BS 7350, EN 558-1(1), DIN 3352. Applications listed by GMC: Water Supply, Oil, Gas, Steam, Raw Water, Waste Water.

Body material
Cast Iron
Pressure rating
PN-16
Type / operation
Y Type
Sizes
DN40 – DN700 (1½″ – 28″)
End connection
BS EN 1092-2, BS 4504, DIN 2501
Get a Quote Datasheet (PDF)
+92 323 4903393

Manufactured by General Manufacturing Concern (Pvt.) Ltd., whose quality management system is certified to ISO 9001:2015. This is a company certification, not a certification of this individual product. Certificate details

Standards & applications

Design & compliances

  • EN 13789
  • BS 5152
  • BS 7350
  • EN 558-1(1)
  • DIN 3352

End connection

  • BS EN 1092-2
  • BS 4504
  • DIN 2501

Testing standard

  • 6755
  • EN 12266-1

Applications listed by GMC

Water Supply, Oil, Gas, Steam, Raw Water, Waste Water.

Related industries: Water Supply & Distribution, Wastewater & Raw Water, Oil, Gas & Petroleum, Steam Systems

Materials of construction

Components and material specifications for Strainer – Cast Iron, PN-16, Y Type
No.ComponentSpecification
1 Body Cast Iron EN-GJL-250
2 Cover Cast Iron EN-GJL-250
3 Perforated Mesh SS 304 | SS 316
4 Gasket Non Asbestos
PaintingEpoxy | Corrosion Resistant | Polyurethane

Where a component lists several materials separated by "|", these are alternatives. Rows marked "Options" are marked optional on the datasheet. State your choice when you request a quote.

Special configurations

Subject to the manufacturer's approval

  • Gasket Spiral Wound, Wire Woven
  • Ball Valve on Top Plate

Dimensions

DIMENSIONS (MM)

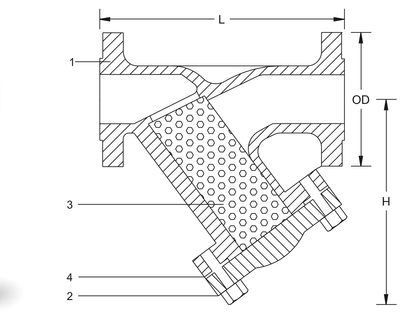

DIMENSIONS (MM) for Strainer – Cast Iron, PN-16, Y Type
Size (DN)401½″502″652½″803″1004″1255″1506″2008″25010″30012″35014″40016″45018″50020″60024″70028″
Face to Face (L) 200 230 290 310 350 400 480 600 730 850 980 1100 1200 – – –
OD (D) 150 165 185 200 220 250 285 340 405 460 520 580 640 715 840 –
Height (H) 200 225 285 300 335 385 460 550 610 700 770 940 1060 1120 1280 –

Dimensions in millimetres, as published on the GMC datasheet. Dimensions are nominal and subject to the manufacturer's standard tolerances. "–" means no value is given for that size. Scroll sideways to see all sizes.

Price the strainer for your project

This product is added to the form for you. Add the sizes, quantities and any material or testing requirements.

Get a Quote WhatsApp

FAQs: Strainer – Cast Iron, PN-16, Y Type

What pressure rating is the Strainer – Cast Iron, PN-16, Y Type made for?
The GMC datasheet lists this strainer as PN-16. Confirm the rating you need in your quotation request so it can be checked against the order.
Which sizes of the Strainer – Cast Iron, PN-16, Y Type are listed?
The datasheet gives dimensions for DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300, DN350, DN400, DN450, DN500, DN600, DN700 (mm nominal sizes). Sizes outside this table are not listed; ask GMC if you need a size that is not shown.
What is the body material of the Strainer – Cast Iron, PN-16, Y Type?
The datasheet specifies the body as Cast Iron EN-GJL-250. The full material list for each component is in the specification table on this page.
Which design standards are referenced for the Strainer – Cast Iron, PN-16, Y Type?
The datasheet lists: EN 13789, BS 5152, BS 7350, EN 558-1(1), DIN 3352. Testing is referenced to 6755, EN 12266-1.
Which flange standards does the Strainer – Cast Iron, PN-16, Y Type connect to?
The end connection is listed as BS EN 1092-2, BS 4504, DIN 2501. Please state your flange standard and drilling when you request a quote.
What applications is the Strainer – Cast Iron, PN-16, Y Type listed for?
GMC lists the following applications: Water Supply, Oil, Gas, Steam, Raw Water, Waste Water. Check suitability for your exact medium, pressure and temperature with GMC before ordering.
Are special configurations available for the Strainer – Cast Iron, PN-16, Y Type?
The datasheet lists these options, subject to the manufacturer's approval: Gasket Spiral Wound, Wire Woven; Ball Valve on Top Plate.
Is a datasheet available for the Strainer – Cast Iron, PN-16, Y Type?
Yes. The original GMC datasheet PDF can be downloaded from this page. It is the source of every value shown here.
